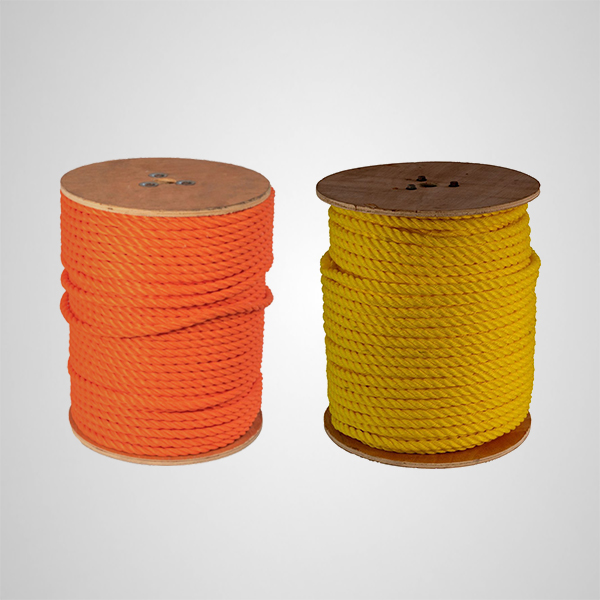

PP Monofilament Rope

SIZE	2 mm to 32 mm in 3 strands (3 Ply) & 4 Stands (4 Ply)
COLOR	Yellow, Blue, Green, Orange, Red, White, Brown and other colours as per customer requirements
TWIST	Single and double twisting both are available
TOLERANCE	2 MM to 32 MM = +/-7%

DIAMETER		CIRC.	WEIGHT		LINEAR DENSITY		MIN TENSILE
DIAMETER		CIRC.	183M	600′	LINEAR DENSITY		MIN TENSILE
MM	Inch	Inches	(kgs)	(lbs)	Kgs/100m	Lbs/100′	Kgs.	Lbs.
6	1/4″	3/4″	3.36	7.41	1.84	1.24	204	449
8	5/16″	1″	5.78	12.73	3.16	2.12	610	1,344
9	3/8″	1-1/8″	7.46	16.44	4.08	2.74	770	1,696
11	7/16″	1-1/4″	9.51	20.95	5.2	3.49	930	2,048
12	1/2″	1-1/2″	13.17	29	7.2	4.83	1,240	2,731
14	9/16″	1-3/4″	17.56	38.67	9.6	6.45	1,410	3,106
16	5/8″	2	23.41	51.56	12.8	8.59	2,080	4,581
18	3/4″	2-1/4″	29.26	64.45	16	10.74	2,540	5,595
22	7/8″	2-3/4″	43.89	96.68	24	16.11	3,100	6,828
24	1″	3	51.94	114.4	28.4	19.07	4,310	9,493
28	1-1/8″	3-1/2″	70.96	156.29	38.8	26.05	5,830	12,841
32	1-5/16″	4	92.9	204.63	50.8	34.11	7,620	16,784
